Congratulations on your purchase of the Swinger Sidewalk Sign, a revolutionary method to get your message out on the streets. The traditional A frame sign's design created a pocket for the wind to blow it over. The Swinger Sidewalk sign is more stable because a slight breeze will gently rock the sign face in its cradle. In fact, the swinging motion generates more attention to your message sign.

The first thing you'll notice with the purchase of you Swinger Sidewalk sign is how quick it was delivered. Most orders placed by 2PM EST will ship the same afternoon.

Inspect your package when it arrives for any damage or missing items. Call us 1-800-582-6366 if there is an exception to the order.

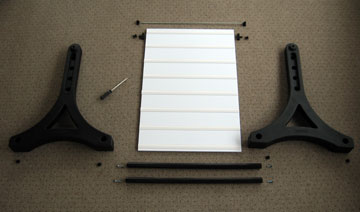

Here is a parts list of what the package contains:

• 1ea- Corrugated 24" Sign Face
• 2ea- Uprights
• 2ea- Cross Tubes
• 4ea- Anti-Slip Feet
• 4ea- Cross Tube Insert
• 4ea- Truss Head Bolt
• 1ea- Threaded Cross Rod
• 2ea- Knob Bushing
• 2ea- U-Channel
• 2ea- Knobs
• 1ea- Instructions

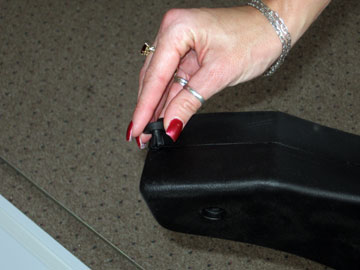

1. The first step is to install each of the four Anti-Slip Feet into each of the four holes on bottom of uprights. Press the drive pin down completely to lock in hole.



2. Step two is to attach the two Cross Tubes to the two uprights using the Cross Tube Inserts (small bushings) and Truss Head Bolts. Place the Cross Tube Insert into the Cross Tube with the small end in first. Then slide the Cross Tube into the deep recess of each Upright. You may have to push hard to make sure it fits tight. Then insert Truss Head Bolt and tighten. Repeat for the other Cross Tube.

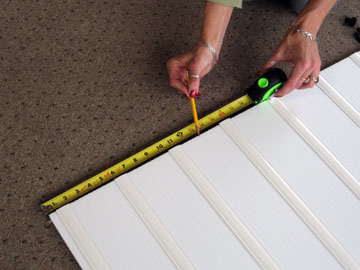

3. The third step is to measure 13-1/2" down from top of sign face and mark the edge. This is where the Threaded Cross Rod will slide through the sign face.



4. The fourth step is to attach Knob to one end of Threaded Cross Rod

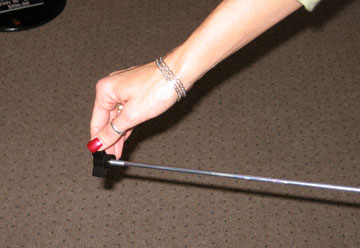

5. Slide on Knob Bushing, large flat face against Knob.

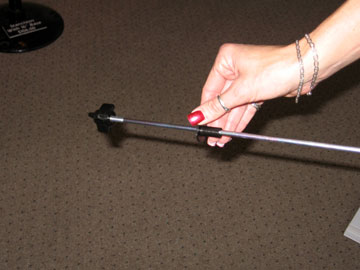

6. Slide on Sign Holder Bushing, U-Channel facing in.

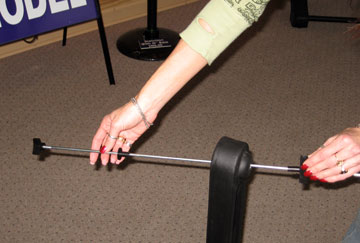

7. Insert Threaded Cross Rod into sign face at mark 13-1/2" from top



8. Slide on Sign Holder Bushing U-Channel facing sign.



9. Insert Threaded Cross Rod into hole at top of Upright.

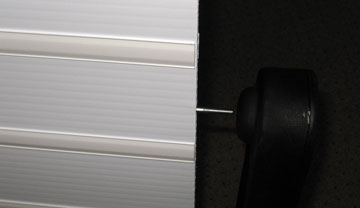

10. Slide on Knob Bushing, large flat face out.

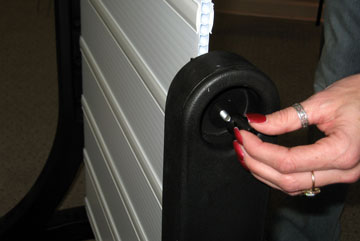

11. Tighten Knobs firmly making sure sign face sits in U-Channels

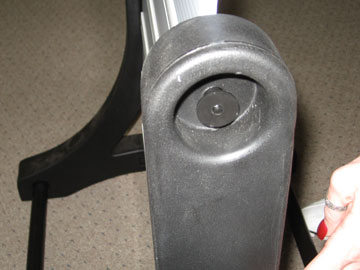

12. Ta Da! Your Swinger Sidewalk sign is ready to use.

Here are some helpful hints when using your Swinger Sidewalk sign:

Decorate the sign face before attaching to base. Keep design simple for maximum impact.

To transport, tip sign on one upright and hold from other Upright. Sign is only 24" wide and will fit through any doorway.

Swinger Sidewalk Signs are designed for wind loads up to 20-25 mph. In the event of high winds bring sign inside, put sandbags on cross tubes, or add sand to ballast port inside of Upright by prying out cap.
